Description
B2 Audio 2-Way 4-Ohm Component Set RIOT 6.5" With 1" Tweeter & Crossover RIOT61
This Listing Includes:
- (2) 6.5" 100W RMS Midrange Speakers
- (2) Silk Dome 10W RMS Tweeters

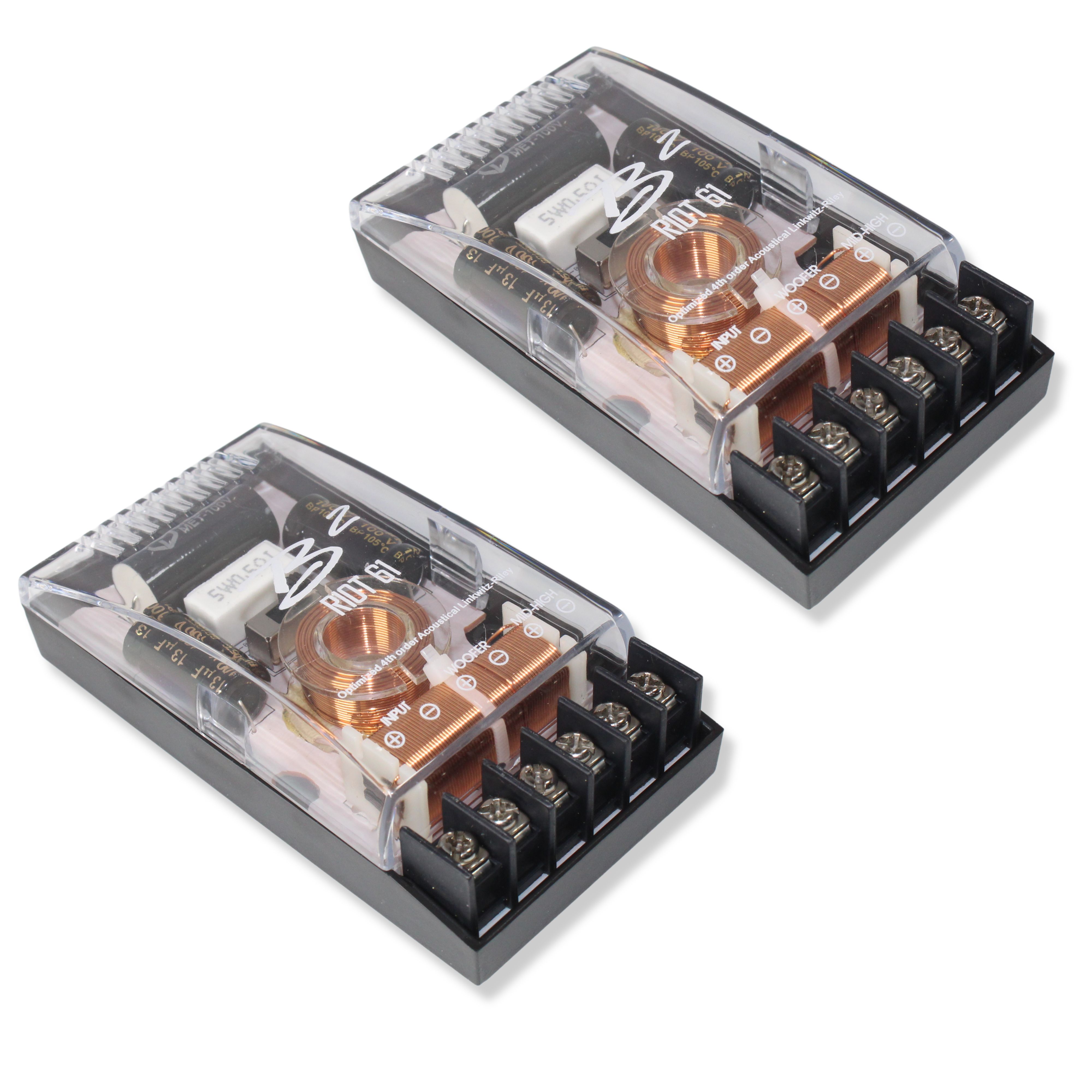

- (2) Crossovers
Item Description
Rev up your car's audio with the RIOT61 6.5" Component Speaker Kit. Engineered for raw power and performance, it features aggressive 12 dB/octave crossovers with tweeter attenuation set at 3.5 KHz for precision. Silk dome tweeters deliver clear highs, while coated paper cone midwoofers provide a fuller sound. With easy installation and specs that scream dominance, including wide frequency response and high sensitivity, the RIOT61 ensures an immersive driving experience.
Features

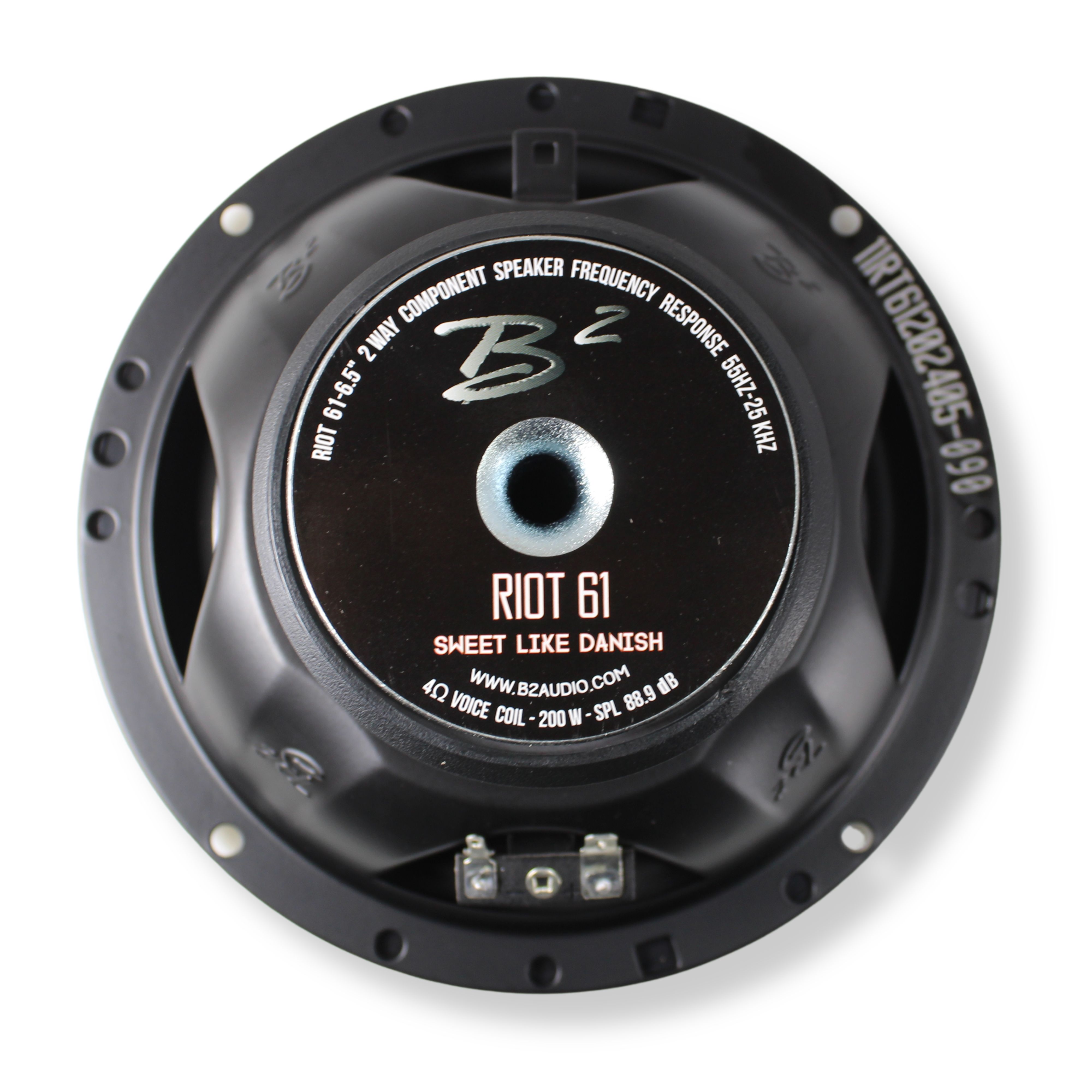

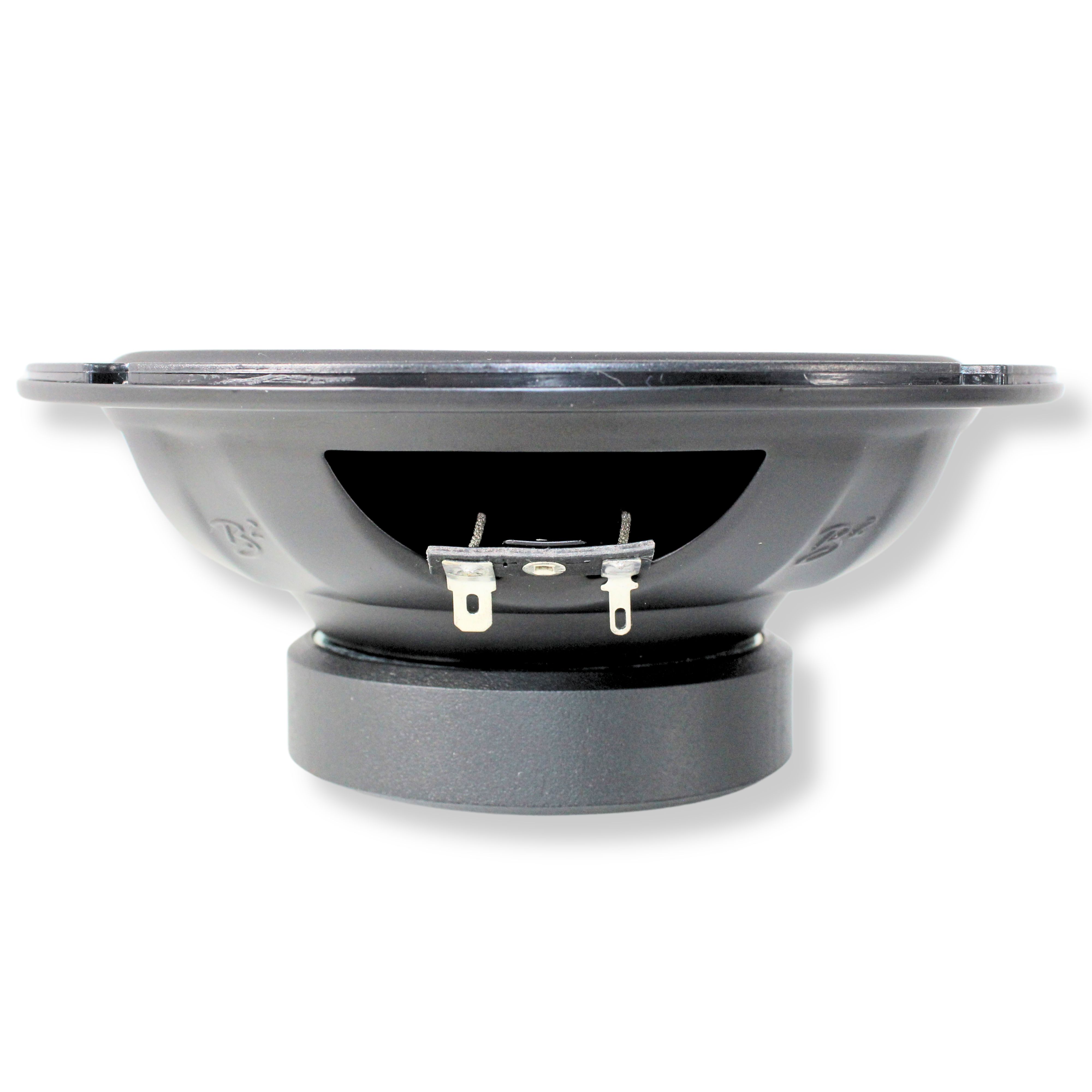

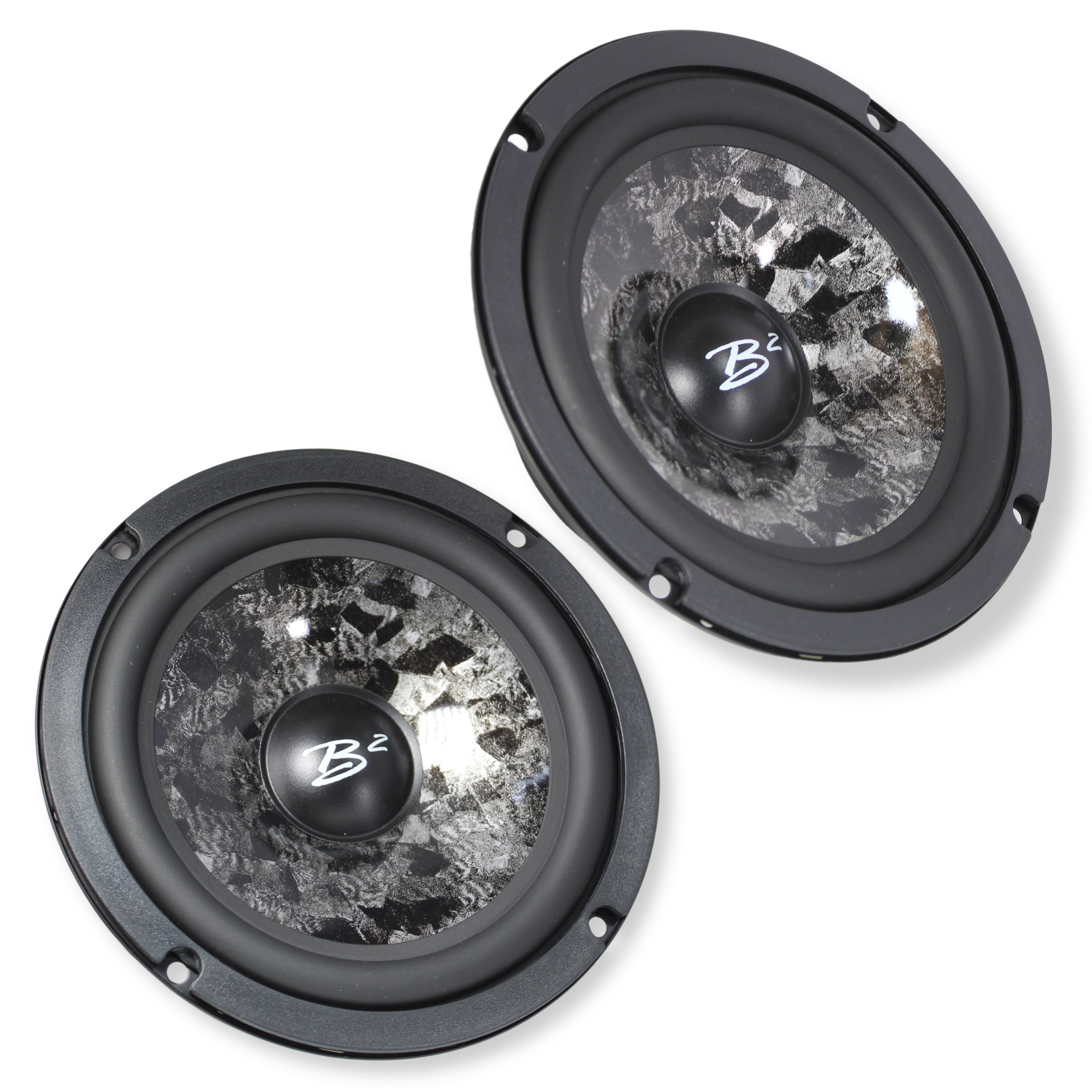

Midrange Specifications:
- Nominal Chassis Diameter: 6.5"
- RMS Power Handling: 75W
- Maximum Power Handling: 200W
- Nominal Impedance: 4 Ohm
- Resonance Frequency: 52 Hz
- Voice Coil Diameter: 1"
- Winding Material: CCA / Copper
- Magnet Type : Neo / Ferrite
- Magnet Weight: 11.7 Oz
- Cone Material: IMWRP
- Frequency Response: 55 Hz ~ 25 KHz
- Sensitivity: 88.9 dB
- Surround Type: U Shaped Rubber

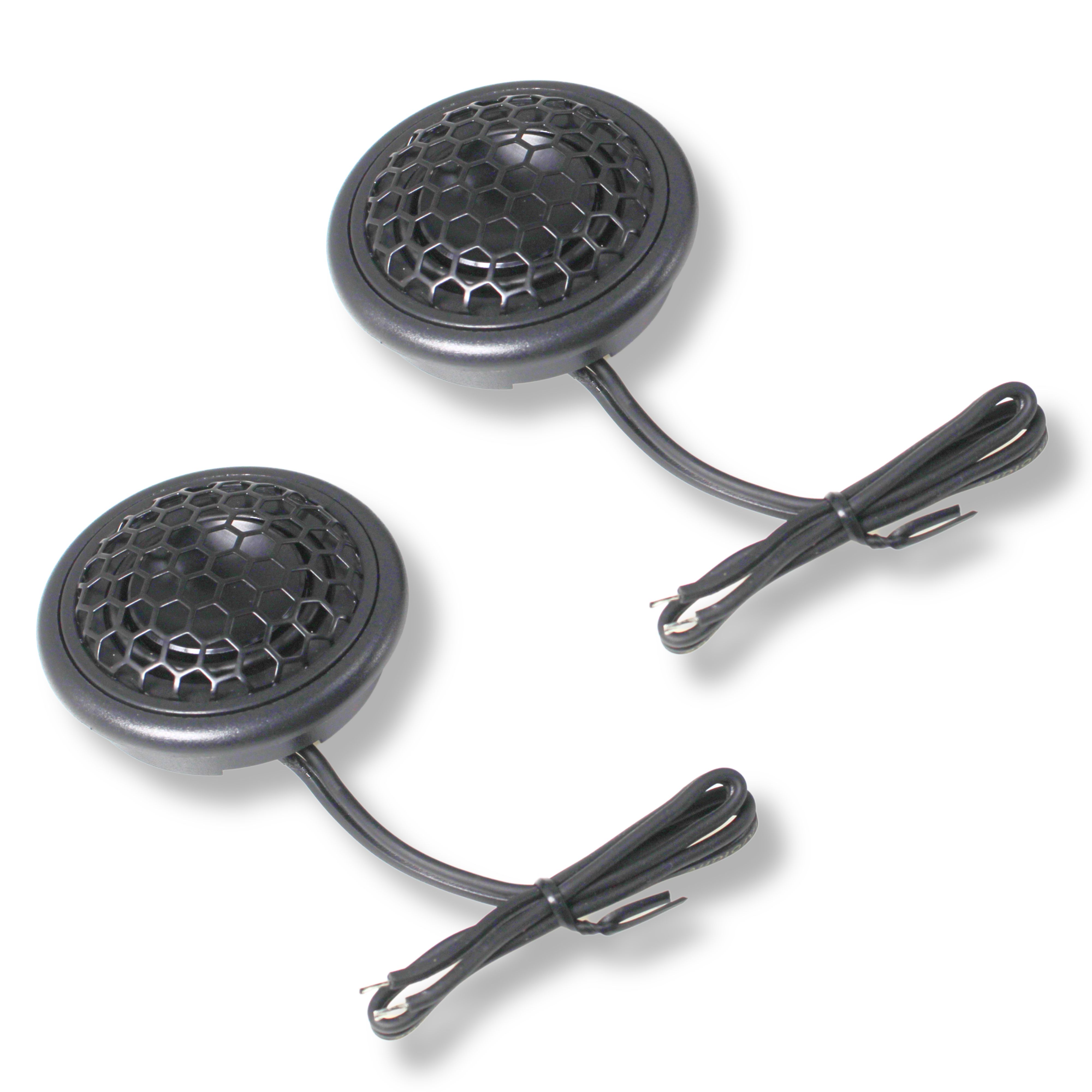

Tweeter Specs:
- RMS Power Handling: 10W
- Max Power Handling: 25W
- Nominal Impedance: 4 Ohm
- Voice Coil Diameter: 1"
- Sensitivity: 94 dB
- Free Air Resonance (Fs): 1.8 KHz
Thiele & Small Parameters:
Midrange:
- Free Air Resonance (Fs): 55 Hz
- Resistance (Re): 3.3 ohm
- Mechanical Factor (Qms): 5.54
- Electrical Factor (Qes): 0.666
- Total Factor (Qts): 0.595
- Equivalent Volume (Vas): 8.64 L
- Compliance (Cms): 560 um/N
- BL Factor (BL): 5.56 T/M
- Moving Mass (Mms): 18.89 g
- XMAX: 6.5 mm
- SD: 128.68 cm^2
- Efficiency: 0.241 Percent
- Le (1 KHz): 0.479 mH
- EBP: 82.58
Measurements
Midrange:
- Overall Diameter: 6.53" / 166mm
- Baffle Cutout Diameter: 5.59 in / 142 mm
- Net Weight (1 pc): 0.96 kgs
- Shipping Weight (sets): 2.51 kgs
- Shipping Box (set): 385 x 195 x 100 mm
- Mounting Diameter: 5.66" / 144mm
- Front Mount Baffle Cutout: 5.55 / 141mm
- Overall Depth: 2.59 / 65.9mm
- Mounting Depth: 2.40" / 61mm
- Sold as: (Pair)
Tweeter:
- Overall Diameter: 1.96" / 50mm
- Overall Depth: 1.00" / 25.6mm
- Mounting Depth: 0.63" / 16mm
