Magnequest FS-030 Output Transformer For Single Amp(300b, 2A3)

Magnequest FS-030 싱글 앰프용 출력 트랜스포머(300b, 2A3)

상품번호	287374249045
상태	Used
거래유형	즉시구매
출고국	미국 (US)

이베이 판매가

$830

약 1,223,420원

구매대행 예상 비용은 로그인 후 확인하실 수 있습니다.

상품 설명

MQ Single-Ended Air Gapped output transformers for 300b amp or 2a3 amp !!!

FS-030 3K;16, 8 and 4 ohms tap, 40W, 60 mA

Long deleted and used output transformer

Tested Fully working

I used this transformers for 6L6 sing ended amp at recent days.

Included 8 pieces of bolt, 2 transformers for 1 Set

As of 2019, no more orders are being taken at this time

The company is no longer building transformers.

Output transformer for sale single, 40W, output, 40W, primary: 3 kΩ, secondary: 4-9-16 ohm, W100 x H120 x D121 mm, 5 kg/each piece

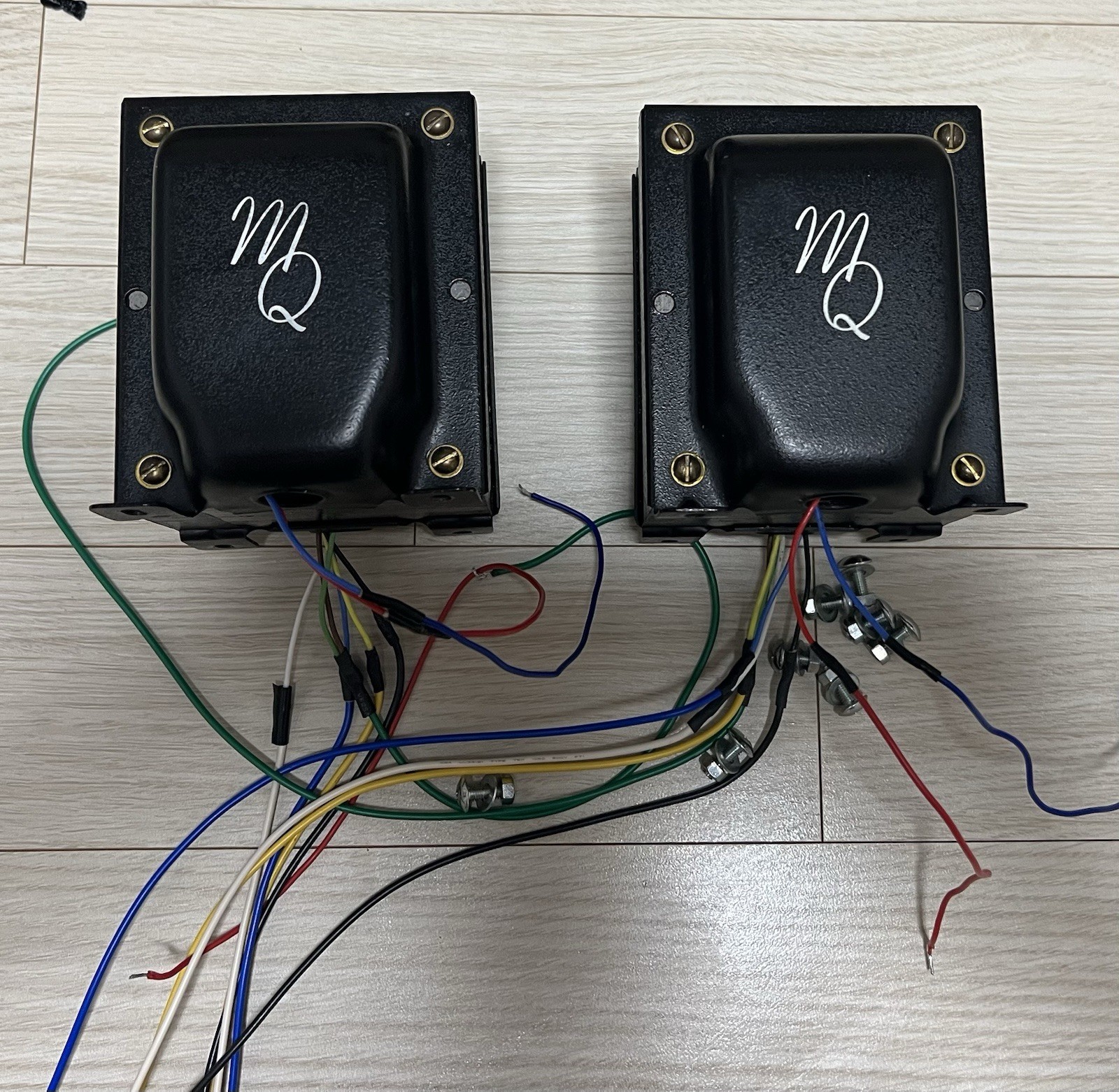

This pair of Magnequest FS-030 output transformers was personally extracted from my working 6L6 single-ended amplifier.

Please note that the lead wires were cut short and spliced/extended.

This was done intentionally during the initial amplifier build to route the wires neatly through the chassis holes fitted with rubber grommets and It was a structural choice for clean installation, not due to any defect.

I have thoroughly tested these transformers prior to extraction and officially confirm that they are in perfect working condition with absolutely no sound anomalies or balance issues.

To ensure that the shortened lead wires have absolutely no impact on performance, I have thoroughly bench-tested both transformers using a Digital Multimeter (DMM) set to Resistance (Ω) mode. The electrical specs are pristine.
