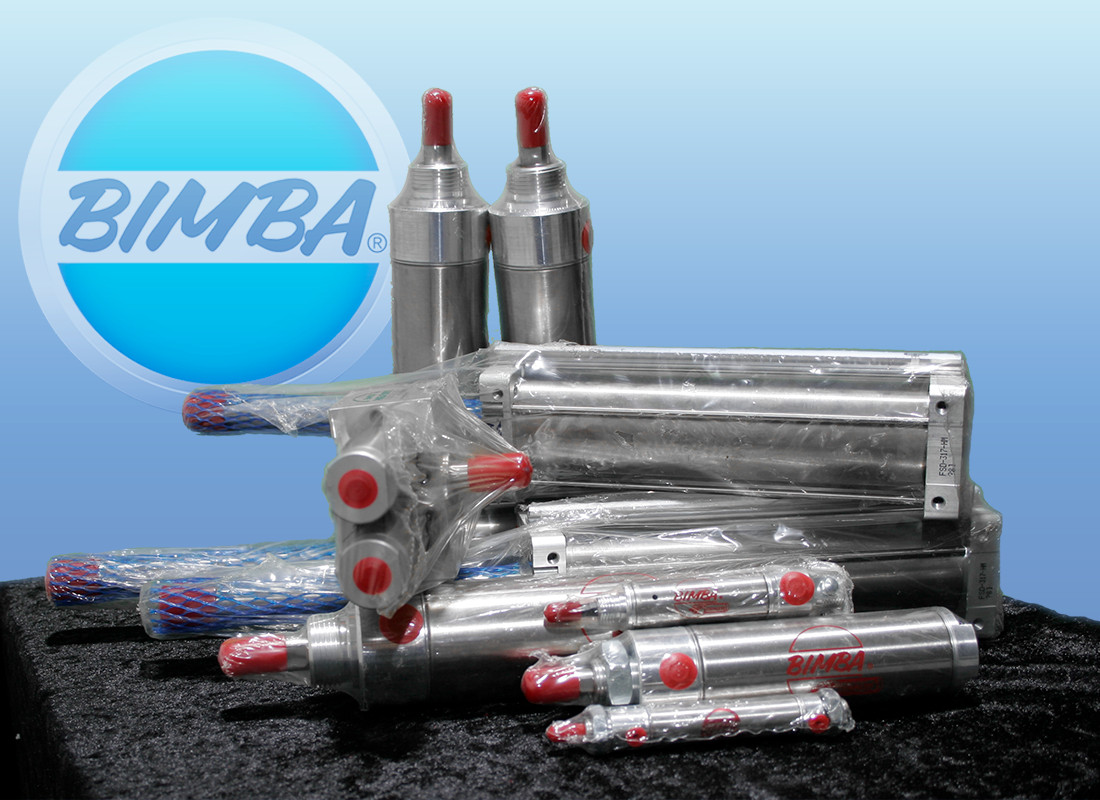

Bimba C-0914.5-DXP Air Cylinder 1-1/16 Bore 14.5 Stroke Double Acting Pneumatic

빔바 C-0914.5-DXP 에어 실린더 1-1/16 보어 14.5 스트로크 더블 액팅 공압

상품번호	306892604678
상태	New – Open box
거래유형	즉시구매
출고국	미국 (US)

이베이 판매가

$119.99

약 176,865원

구매대행 예상 비용은 로그인 후 확인하실 수 있습니다.

상품 설명

Description:

The Bimba C-0914.5-DXP is a double-acting pneumatic air cylinder from the Original Line with Adjustable Cushion series. This model is characterized by its high-strength aluminum alloy porting ends and stainless steel rod construction. While specific MSRP (Manufacturer's Suggested Retail Price) data is often restricted to authorized dealer portals, current market prices for new units range from approximately $138.00 to $146.26.

Specifications:

Bore Size: 1-1/16"
Stroke Length: 14-1/2" (14.500 in)
Action: Double-acting, air return
Cushioning: Adjustable cushions on both ends
Mounting: Universal (double end or rear pivot)
Ports: 2 x 1/8" NPT threaded ports
Rod Thread: 5/16-24 UNF-2A (male)
Breakaway Friction: Typically less than 5 PSI.
Max Pressure: 250 psi
Mounting Thread: 5/8-18 threaded mounting nut on both ends
Operating Temp: -20°F to +200°F (-28°C to +93°C)
Seals: Buna N "U" Cup seals

This listing is for one(1) single cylinder. Not all of the cylinders in the image.
