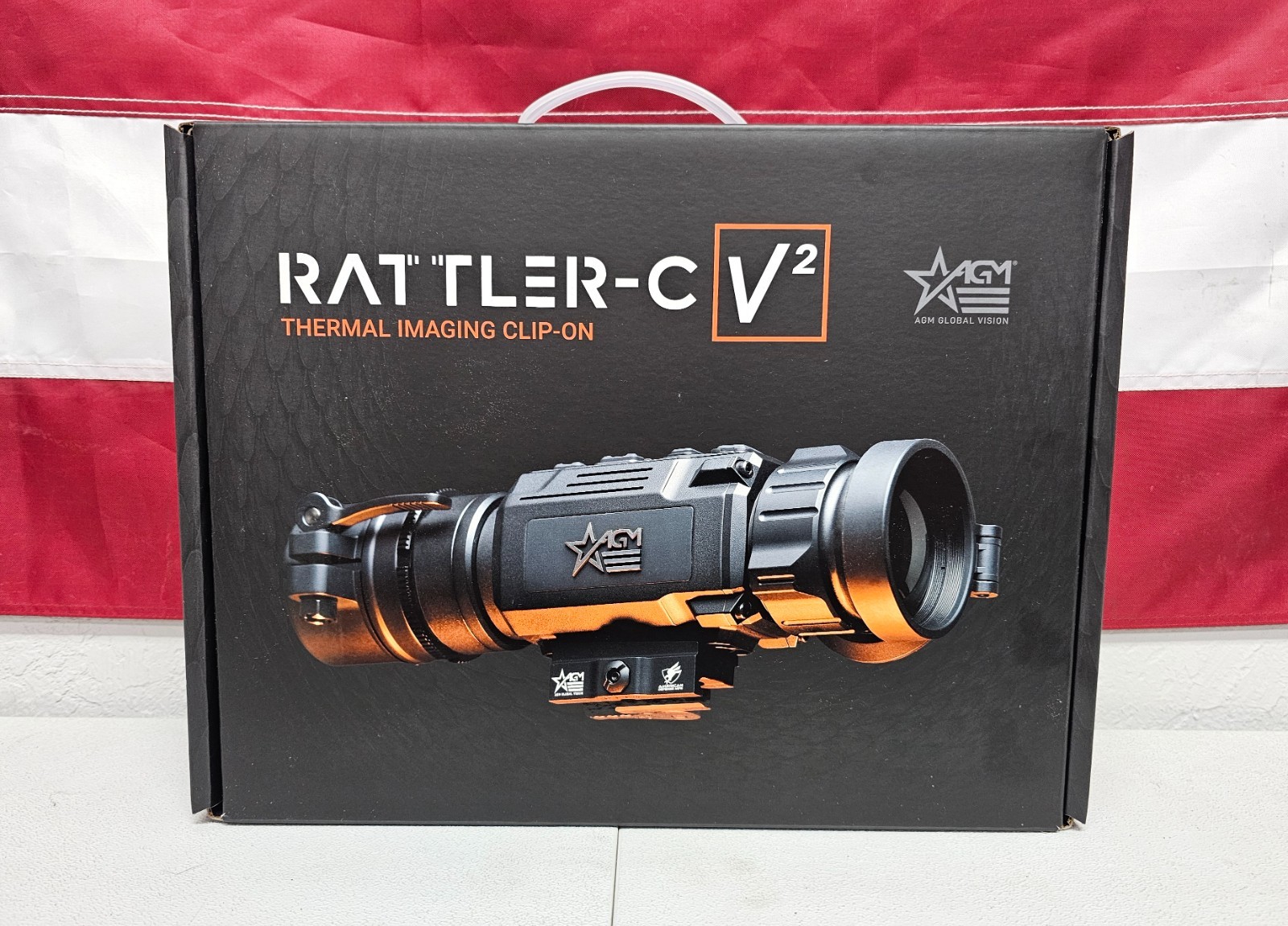

AGM Rattler-C V2 19-256 50Hz 19mm Thermal Imaging Clip On - 314208560103R921

Description

The AGM Rattler-C V2 19-256 is a high-performance thermal clip-on featuring a 12μm VOx sensor and 256×192 resolution. Designed for seamless attachment in front of daytime optics, it delivers clear thermal imaging with up to 1000m detection range, onboard recording, and 11.5-hour battery life.

Features

• Quick conversion of daytime optics into thermal imaging device

• 12μm high-sensitivity VOx thermal detector

• 256 × 192 resolution with 50 Hz refresh rate

• Detection range up to 1000m (6' object)

• 19mm F/1.0 germanium lens

• NETD < 35mK for excellent thermal sensitivity

• 0.39" OLED display (1024×768)

• Built-in 16GB EMMC storage

• On-board video & audio recording

• Shot Activated Recording (SAR)

• Wi-Fi for live streaming & app connectivity

• Adjustable color palettes (Black Hot, White Hot, Red Hot, Fusion)

• Stadiametric rangefinder

• Waterproof & shockproof (IP67 rated)

• Up to 11.5 hours runtime

• USB-C external power compatibility

• 5-Year Manufacturer Warranty

Specifications

• Brand: AGM Global Vision

• Model: Rattler-C V2 19-256

• Part Number: 314208560103R921

• Detector Type: 12μm VOx Uncooled Focal Plane Array

• Resolution: 256 × 192

• Refresh Rate: 50 Hz

• Field of View: 9.3° × 6.9°

• Optical Magnification: 1×

• Lens System: 19mm F/1.0

• Detection Range: 1000m / 1000 yd

• Display: 0.39" OLED 1024×768

• Storage: Built-in 16GB EMMC

• Battery Type: NE-4400 Rechargeable Li-Ion

• Battery Life: Up to 11.5 Hours

• External Power: 5V USB-C

• Operating Temperature: -30°C to +55°C

• Protection Level: IP67

• Dimensions: 7.2 × 2.7 × 2.6 in

• Weight: 1.10 lb

What’s Included

• AGM Rattler-C V2 19-256 Thermal Clip-On

• Mount

• (2) NE-4400 Rechargeable Batteries

• Charger

• USB Cable

• Lens Cloth

• Carrying Case

• User Manual
