02M3C DELL EMC MICRON MTFDDAK480TDT 480GB SATA 6GBPS 2.5" SSD T350 R640 R440
DELL EMC MICRON 02M3C MTFDDAK480TDT 480GB SATA 6GBPS 2.5" SSD T350 R640 R440
| 상품번호 | 800231675832 |
| 상태 | Used |
| 거래유형 | 즉시구매 |
| 출고국 | 미국 (US) |
상품 설명

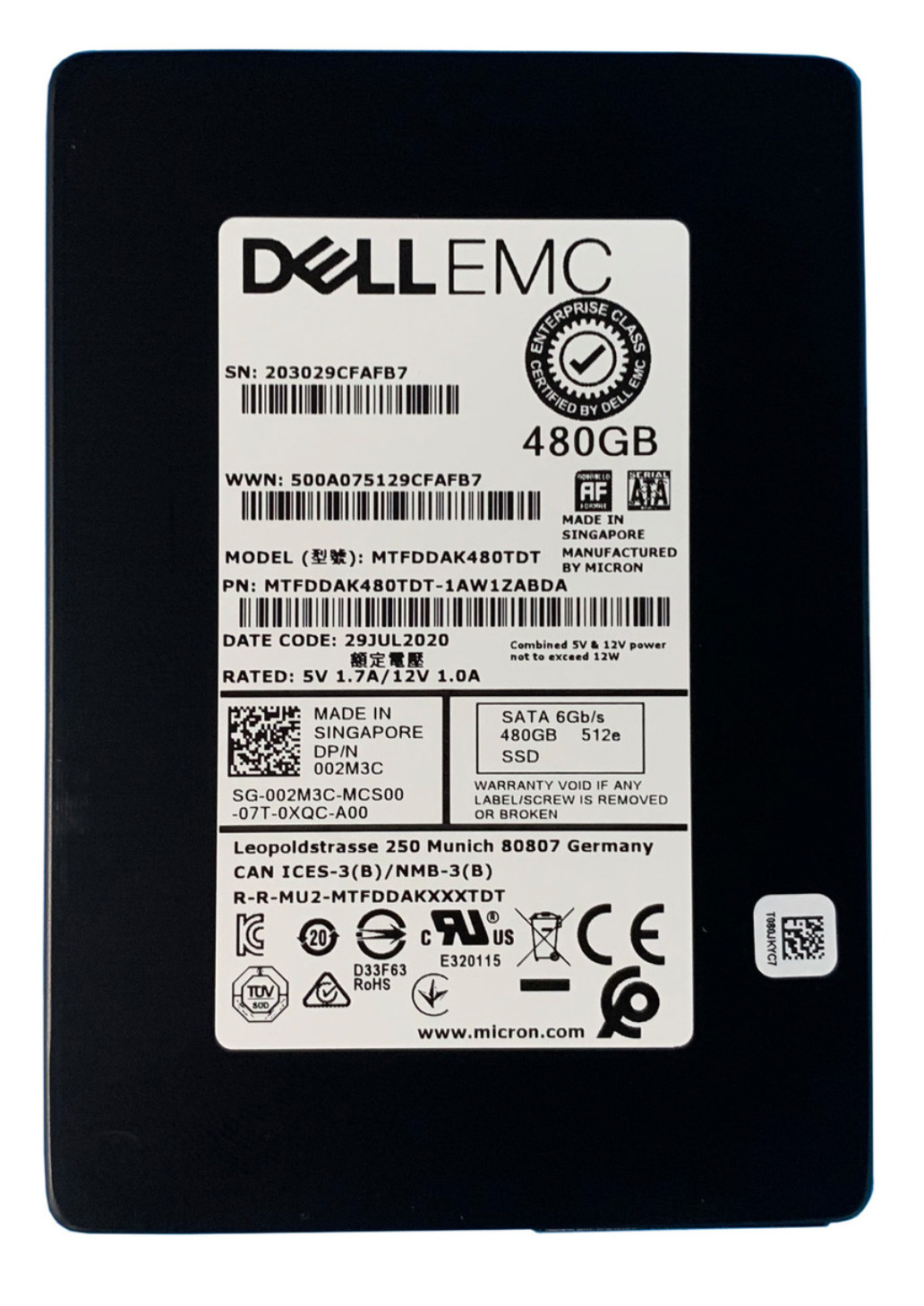

Dell 480GB Enterprise SATA SSD
Micron 5300 MAX | SATA 6Gbps | 2.5" 7mm | DP/N: 02M3C / MTFDDAK480TDT
Representative image. The device shipped is a genuine, fully tested Dell OEM 480GB enterprise SSD.
Item Condition & Key Features
CONDITION: USED / PULL (Tested, 100% Health, Fully Cleared)
- Micron 5300 MAX Class: Engineered for mixed-use (MU) enterprise workloads, providing superior write endurance and consistent low latency under database or virtualized conditions.
- SATA 6 Gbps Data Interface: Compatible with SATA-III protocols, ensuring plug-and-play setup in standard hot-plug SAS/SATA backplanes.
- Advanced Data Integrity: Onboard power-loss protection, end-to-end data path protection, and adaptive thermal monitoring protect your server data during power faults.
- Hardware Encryption Option: Supports robust AES 256-bit hardware-level encryption and is TCG Opal/Enterprise compliant.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Micron / Dell OEM |
| Dell Part Number | 02M3C / 002M3C |
| Micron Model Number | MTFDDAK480TDT (Micron 5300 MAX) |
| Storage Capacity | 480 GB |
| Data Interface | SATA 6 Gb/s (backward compatible with SATA 3 Gb/s) |
| Form Factor | 2.5-Inch (7mm slim-profile height) |
| NAND Memory Type | 3D TLC (Triple-Level Cell) |
| Endurance Class | Mixed-Use (MU) / 5300 MAX Class (approx. 2.0 DWPD) |
| Sequential Read Rate | Up to 540 MB/s |
| Sequential Write Rate | Up to 460 MB/s |
| Random Read IOPS (4KB) | Up to 95,000 IOPS |
| Random Write IOPS (4KB) | Up to 60,000 IOPS |
| Security Features | AES 256-bit hardware encryption, TCG Opal/Enterprise compliant |
| Mean Time Between Failures | 3,000,000 device hours (MTBF) |
| Compatibility | Dell PowerEdge servers (14G, 15G, 16G, e.g., R440, R640, R740, T350, T440) |
⚠️ Caddy/Tray Fitment Warning
Bare Drive Only: This listing is for the **bare 2.5" SSD module only**. It does **NOT include any caddy, hot-plug tray, or mounting screws**. To mount this drive inside a Dell PowerEdge server (such as R440, R640, or T350), you must purchase or reuse a compatible Dell 2.5" hot-plug drive caddy (e.g. Gen 14/15/16 generation).
Warranty & Assurance
30-Day Functionality Guarantee
We guarantee this Micron enterprise solid-state drive powers up, formats, registers healthy SMART telemetry, and reads/writes without bad sectors for 30 days from delivery.
- Covers sector integrity, memory cell health, and interface speed.
- Buyer is responsible for return shipping costs.
Secure Packing & Dispatch
Drives are wrapped in thick anti-static packaging blocks and placed inside custom bubble mailers to prevent shock damage or electrostatic discharge during delivery.
- Handling Time: 1 Business Day.
- Tracking details provided instantly upon dispatch.
